Grinder Pumps

High Head IGP Series Grinder Pump

Grinder Pumps

High Head IGP Series Grinder Pump

FPS IGPH Manual Series grinder pumps are ideal for residential and light commercial sewage waste transfer where higher head conditions exist.



FE_Select_Logo_Tagline_BLK.psd

Available on FE Select

Size. Configure. Quote. Input your performance requirements or specs, and our industry-leading online tool will help you find the right Franklin Electric product for the job.

Size with FE Select US  |  Size with FE Select CA

Overview


Features & Benefits

  • Vertical 1-1/4" FNPT discharge
  • Dual stage hydraulics
  • Externally-mounted start components*
  • Carbon/Ceramic mechanical seal
  • Deflection-resistant, short motor shaft
  • Corrosion-resistant upper and lower brass impellers minimize downtime and maintenance

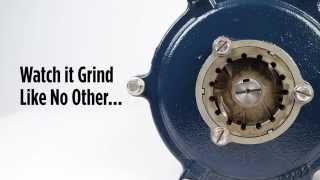

  • Tight cutting clearances for superior grinding at 414,000 cuts per minute
  • Epoxy-coated finish for corrosion resistance and durability
  • Built-in overload protection prevents over-current and over- temperature damage

Applications:

  • Engineered Products IGPH Series Grinder Pumps are ideal for sewage waste transfer

*The IGPH Series requires a specific control panel or capacitor kit from FPS, matched to the pump for proper operation and third-party approval.

Specifications


Capacity 30 gpm @ 100'
Shut Off 200' (61 m)
Max. Liquid Temp. 140 °F (60 °C)
Discharge 1-1/4" (31.75 mm) Vertical FNPT
Impeller Brass
Electrical 208-230 V, 60 Hz, 18.5 A, Single Phase
208-230 V, 60 Hz, 16 A, Single Phase
208-230 V, 60 Hz, 13 A, Three Phase
460 V, 60 Hz, 6 A, Three Phase
Operation Manual or Automatic
IGPH Series Curve.svg
Head GPM (LPM)
100' 30 (113.6)
125' 24 (90.8)
150' 18 (68.1)
175' 10 (37.9)

Order Information


Manual High-Head Grinder Pump

Single Phase

Item Model HP Volts Discharge Amps - Full Load Lead Length
515712 IGPH-M231-30 2 hp 230 VAC 1.25 " 30 ft
515704 IGPH-M233-30 2 hp 230 VAC 1.25 " 30 ft
515700 IGPHR-M231-30 2 hp 230 VAC 1.25 " 16 A 30 ft
515714 IGPH-M231-50 2 hp 230 VAC 1.25 " 50 ft
515702 IGPHR-M231-50 2 hp 230 VAC 1.25 " 50 ft
515706 IGPH-M463-30 2 hp 460 VAC 1.25 " 30 ft
515707 IGPH-M463-50 2 hp 460 VAC 1.25 " 50 ft

Three Phase

Item Model HP Volts Discharge Amps - Full Load Lead Length
515704 IGPH-M233-30 2 hp 230 VAC 1.25 " 30 ft
515706 IGPH-M463-30 2 hp 460 VAC 1.25 " 30 ft
515707 IGPH-M463-50 2 hp 460 VAC 1.25 " 50 ft

Automatic High-Head Grinder Pump

Single Phase

Item Model HP Volts Discharge Amps - Full Load Lead Length
515713 IGPH-A231-30 2 hp 230 VAC 1.25 " 30 ft
515716 IGPH-A231-30 2 hp 230 VAC 1.25 " 30 ft
515701 IGPHR-A231-30 2 hp 230 VAC 1.25 " 30 ft
515711 IGPHR-A231-30 2 hp 230 VAC 1.25 " 30 ft
