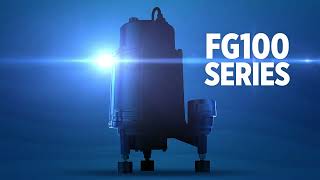

FG100 Series Grinder Pump
FG100 Series Grinder Pump
Got an effluent or sewage pump that’s struggling with clogs or binding? The durability and performance of the FPS FG100 Series 1-hp grinder pump will keep wastewater flowing and overcome downtime. Its cutting mechanism is equipped with 27 stationary blades and 8 rotating blades, producing 3450 RPM and 745,200 cuts per minute for sewage or effluent removal in residential and light commercial applications. When you need to take sewage removal to the next level to be truly worry-free, let our FPS pumping solutions handle the daily grind so you don’t have to.
We also invest in testing that assures quality: before leaving our factory, every pump is wet tested by fully submerging the unit. This ensures you get the performance you need, even in the most challenging jobs.
Overview
Features & Benefits
- Heavy-duty 1-hp Class F motor provides optimal power to prevent flushables and other debris from causing clogs and downtime.
- Superior grinding capability powered by its 27 stationary blades and eight rotating blades, producing 3450 rpm and 745,200 cuts per minute.
- 1-1/4" discharge and 2" NPT adapter discharge, preassembled onto the pump, make it easy to directly replace a sewage ejector pump.
- Silicon carbide mechanical seal provides up to six times longer seal life with lower thermal expansion and higher abrasion resistance when compared to carbon ceramic seals.
- Easily replaceable power cord is sealed at the connection point for unit protection against water.
- Non-skid adjustable legs for stability.
- Tethered float switch available.
- Three-year warranty
- Every pump is wet tested by fully submerging the unit before leaving our factory.
Specifications
| Capacity | 49.3 gpm @ 10' |
| Shut Off | 53' (16.2 m) |
| Max. Liquid Temp. | 140 °F (60 °C) |
| Discharge | 1-1/4" (31.75 mm) and 2" (50.8 mm) NPT adapter |
| Impeller | Cast Iron |
| Electrical | 115 V, 60 Hz, 12.5 A |
| Operation | Piggyback Tethered Float or Manual |
| Head | GPM (LPM) |
| 10' | 49.3 (186.6) |
| 20' | 43.9 (166.2) |
| 30' | 37.5 (142) |
| 40' | 28.7 (108.6) |
| 50' | 15.3 (57.9) |
Support Materials
Featured Downloads
Parts & Accessories
FG100 Series Parts & Accessories
| Item | Description |
|---|---|
| 700901 | Accessory RVMS-15 Piggyback Vertical Float Switch, 115 V, 15' cord, 1/2 HP max |
| 700902 | Accessory RFSN Series Piggyback Mechanical Float Switch, 115 V, 15' cord length, 1/2 HP Max |
| 700903 | Accessory RFSN Series Piggyback Mechanical Float Switch, 1/2 HP Max, 20' cord, 115 V |
| 700904 | Accessory RFMS Series Piggyback Mechanical Float Switch, 1/2 HP Max, 30' cord, 115 V |
| 700905 | Accessory RFMSP Series Piggyback Mechanical Float Switch, 3/4 HP Max, 50' cord, 115 V |
| 305623101 | FG100 Series Cutter Kit |
| 305623102 | FG100 Series Impeller Kit |
| 305623103 | FG100 Series Foot Kit |
| 305623104 | FG100 Series 2" Discharge Kit |
| 305623105 | FG100 Starter Kit |
| 305623106 | FG100 Series Power Cord Kit, 115V |
Switches
| Item | Model | Description |
|---|---|---|
| 700901 | RVMS-15 | Accessory RVMS-15 Piggyback Vertical Float Switch, 115 V, 15' cord, 1/2 HP max |
| 700902 | RFMS-15 | Accessory RFSN Series Piggyback Mechanical Float Switch, 115 V, 15' cord length, 1/2 HP Max |
| 700903 | RFSN-20 | Accessory RFSN Series Piggyback Mechanical Float Switch, 1/2 HP Max, 20' cord, 115 V |
| 700904 | RFMS-30 | Accessory RFMS Series Piggyback Mechanical Float Switch, 1/2 HP Max, 30' cord, 115 V |
| 700905 | RFMSP-50 | Accessory RFMSP Series Piggyback Mechanical Float Switch, 3/4 HP Max, 50' cord, 115 V |
